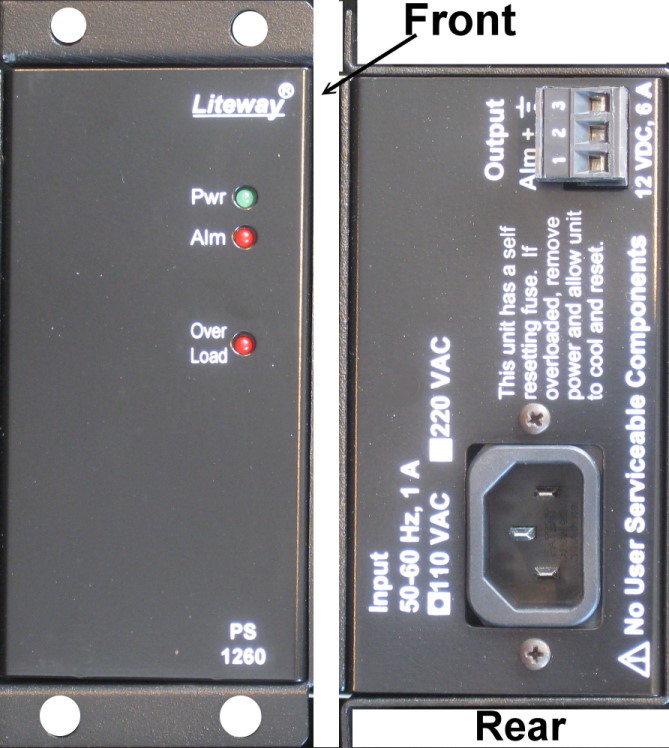

PS-1260   Power Supply
For powering all LiteLink Systems

Typical redundant power supply configuration


The PS-1260 is a stand-alone or rack mountable power supplies that may be used to power multiple fiber optic transmission units.  Recommended for the RMP-3000 rack.  For the RMP-2000 or RMP-1000 the PS-1210 is suggested.

These power supplies have power, overload and alarm indicators. Internal fuses protect the units in the event of an overload and will automatically reset when the overload condition is removed. The power supplies have the ability to be paralleled for redundant operation. Both North American and European versions of all power supplies are available.

Both of these efficient supplies are compliant with the US Energy Independence and Security Act of 2007 and current California Energy Commission (CEC) efficiency standards.


Specifications Important Features
DC Output Voltage  12VDC unregulated*     Redundant Operation
DC Output Current  PS-1210     1 Amp   Self Resetting Fuse
 PS-1260      6 Amp   Power & Overload
AC Input *  US    115 VAC, 50/60 Hz        Indicators
 EU    230 VAC, 50 Hz
 UK    230 VAC, 50 Hz
  Single model for stand
     alone or rack mount
AC Input Connector  Universal IEC   Din Rail mount option
Indicator Lights  Power, Overload, Alarm**
Optical Loss Budget  0-12 dB (multimode),
 0-12 dB (single-mode)

Output Connectors  Removable Terminal Block
Operating Temperature  -35 to +75C
Physical Size PS1210  7.0 x 5.0 x 1.0"
178mm x 127mm x 25.4mm

Physical Size PS1260  7.0 x 5.0 x 2.23"
178mm x 127mm x 56.6mm


Note all specifications are subject to change without notice
* Output can be as high as 17VDC with no load.

** The Alarm light is used to indicate a failure of one supply when two or more are connected for redundant operation.


-US models -EU models
 USA Power Cord  European Union Power Cord

-UK models -AU models
 United Kingdom Power Cord  Austrailia Power Cord
